30–300W Modular LED Street Light
The R.3254 modular LED street light is developed for economical, efficient outdoor road lighting. It combines an integrated die-cast aluminum housing with independently replaceable optical modules for simpler maintenance and reliable operation.
Designed for motorways, pedestrian roads, bridges and rural areas, this series offers a practical lighting solution where energy efficiency and long-term serviceability matter.

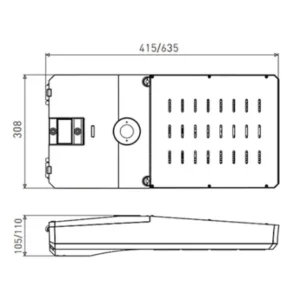

Product parameters
| Attribute | Description |
|---|---|
| Product Model | R.3254 |
| Series Power Range | 30–300W |
| Housing Sizes | Two sizes available |
| Housing Material | Integrated high-pressure die-cast aluminum alloy |
| Optical Module | Independent and replaceable LED optical modules |
| Optical Module Protection | IP67 |
| Optical Connectors | IP67 waterproof mating connectors |
| Luminaire Ingress Protection | IP66* |
| Impact Resistance | IK09* |
| Safety Class | Class I / Class II* |
| CRI | Ra 70* |
| Corrosion Resistance | WF2* |
| Operating Temperature | −45°C to +50°C* |
| Ambient Humidity | 10–95% RH* |
| Color Temperature | 2200K / 2700K / 3000K / 4000K / 5000K* |
| Mounting Adjustment | Rear horizontal adjuster |
| Optional Accessories | Anti-falling steel cable; surge protector (10kV / 15kV / 20kV / 40kV); NEMA / Zhaga interface |
Product Model Comparison
 | Modulus number | 1~4 |
| Power | 30~240W | |
| Efficiency | 100lm/w~180lm/w | |
| Weight | 3.0~6.0KG | |

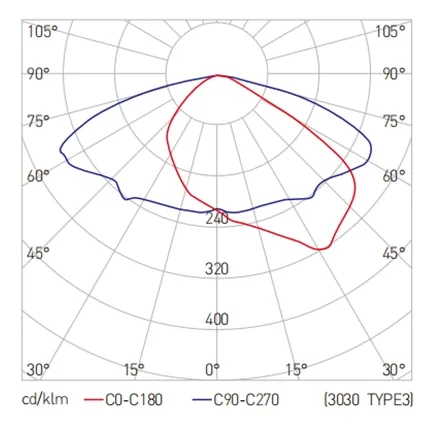

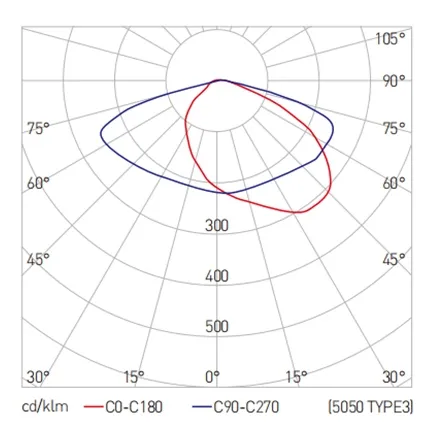

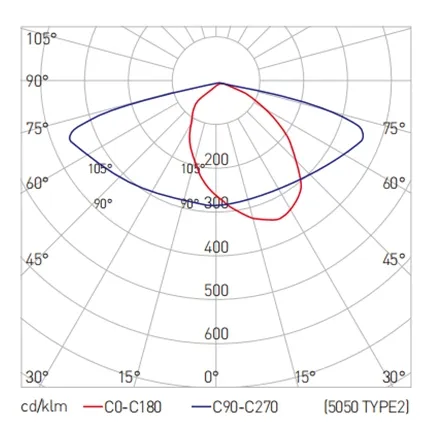

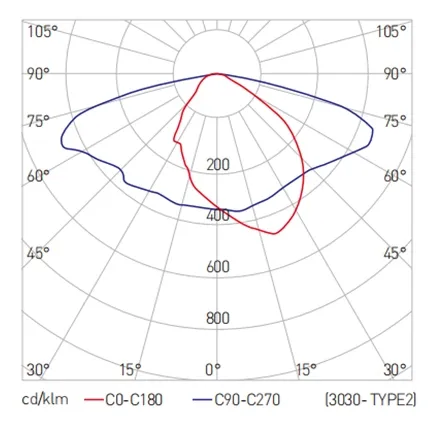

| Optics | Type 2、Type3 |
Match the distribution to the site.

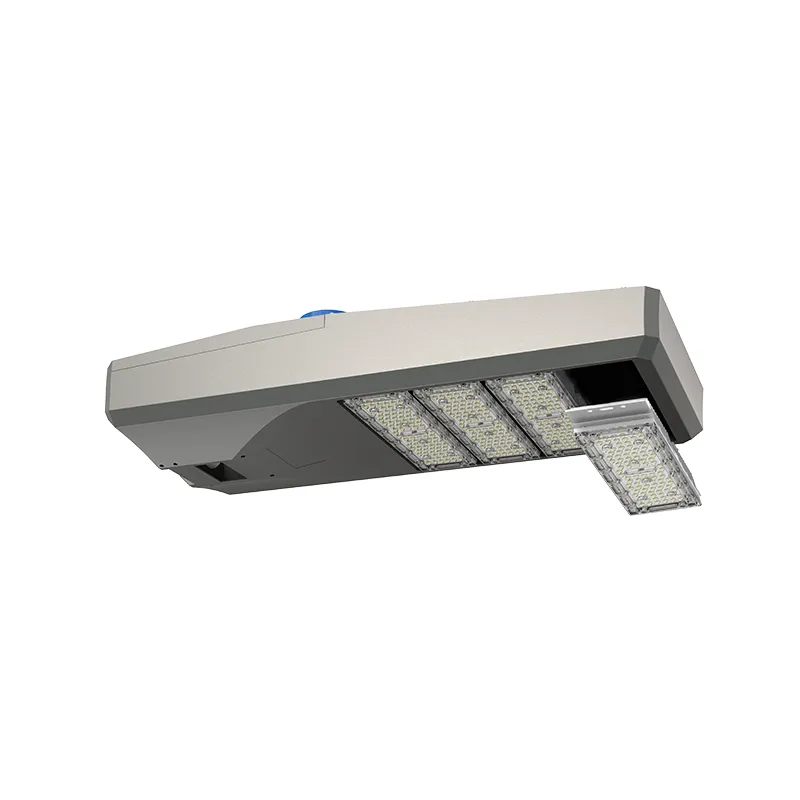

Independent Replaceable Optical Modules
The optical assembly consists of independent light-emitting modules rather than a single non-serviceable unit. Each module carries an IP67 protection rating and can be replaced individually when maintenance is required.
This configuration can reduce the need to replace the complete luminaire during module-level servicing.

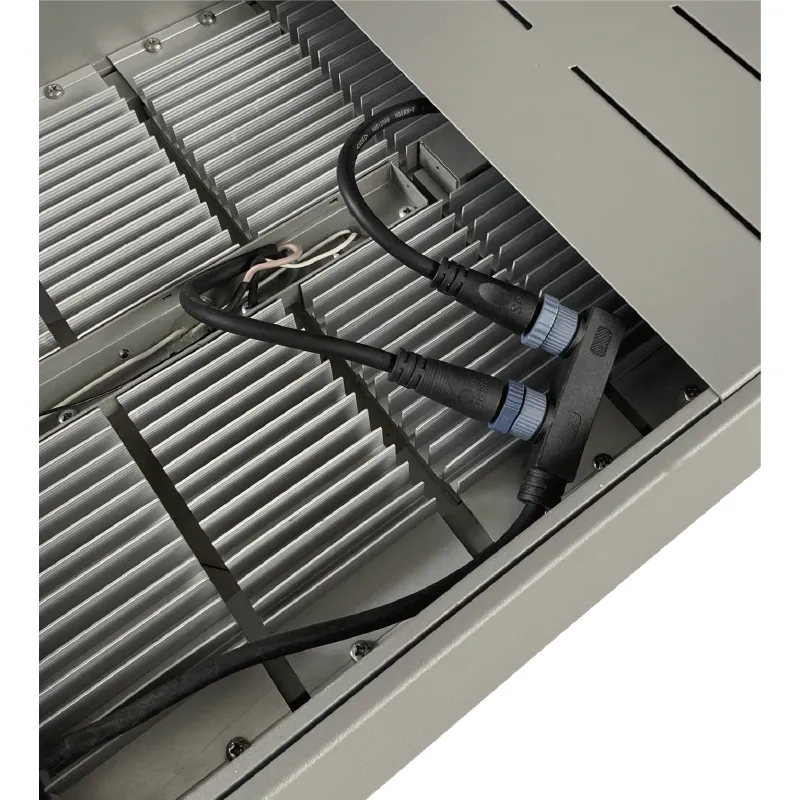

Waterproof Module Connections
Each optical module uses a waterproof mating connector. The electrical cavity also includes a waterproof multi-pin connection to provide an organized interface between the power system and individual lighting modules.
The modular connection layout helps simplify inspection, disconnection and replacement.

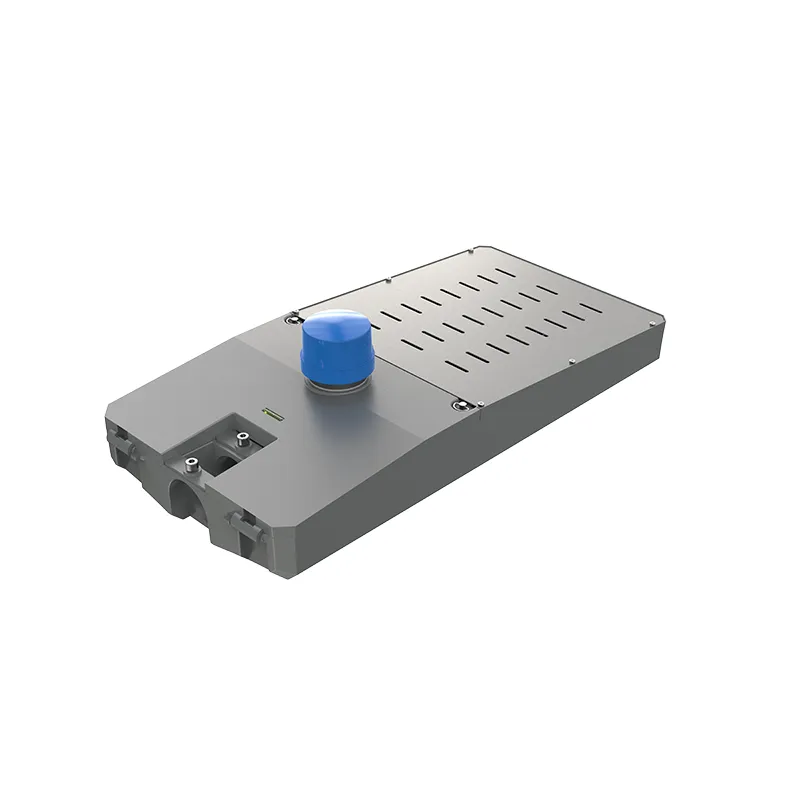

Integrated Die-Cast Housing
The integrated high-pressure die-cast aluminum alloy body is designed to provide a rigid structure for outdoor lighting. The original product description highlights its suitability for vibration-prone installations such as elevated roads and bridges.
A horizontal adjuster at the rear supports practical on-site installation.

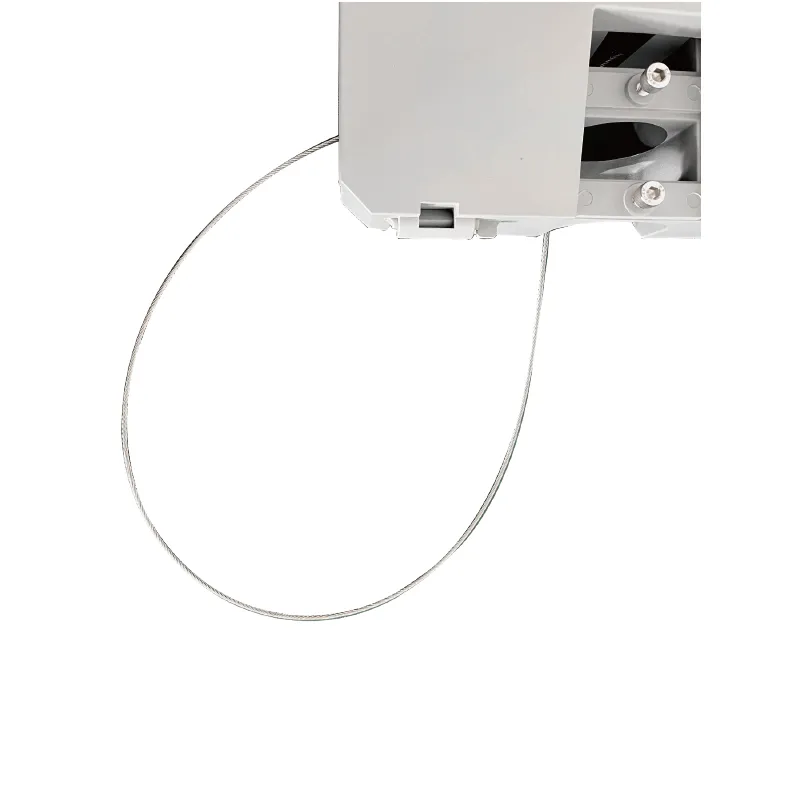

Optional Protection and Control Interfaces
Available accessory options include an anti-falling steel cable, surge protective devices rated at 10kV, 15kV, 20kV or 40kV, and NEMA or Zhaga standard interfaces.
Confirm accessory compatibility and control requirements when selecting the final configuration.
Match the distribution to the site.
Where to Use the 30–300W Modular LED Street Light
The 30–300W Modular LED Street Light is positioned for outdoor road lighting projects that need flexible power selection, straightforward servicing and robust construction.
Motorways and Urban Roads
For projects requiring durable roadway lighting and an optical configuration selected to suit the road geometry.
Pedestrian and Local Access Roads
For pedestrian routes and secondary roads where efficiency and ongoing maintenance are important considerations.
Rural and Mountain Roads
For locations with limited available power where relatively low-power lighting solutions may be desirable.
Bridges and Elevated Roads
For sites where the fixture structure may be exposed to increased mechanical vibration.
Share your project wattage, road width, mounting height, pole spacing and preferred control interface. We can review suitable configurations and provide product information for your lighting project.
